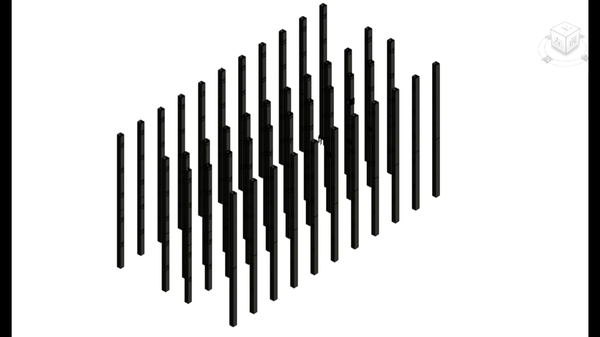

SCBIM was developed for S-CAS Prefab. Building Systemas a whole-process management platform integrating:
BIM-design software: standard and parameterized design based on standardized AkoeTech components, calculation models
ERP system: quote, PO, OA, managing, financial, etc.
Project management system: design, manufacture, logistic(I.o.t.), supply chain, construction, maintenance, etc.

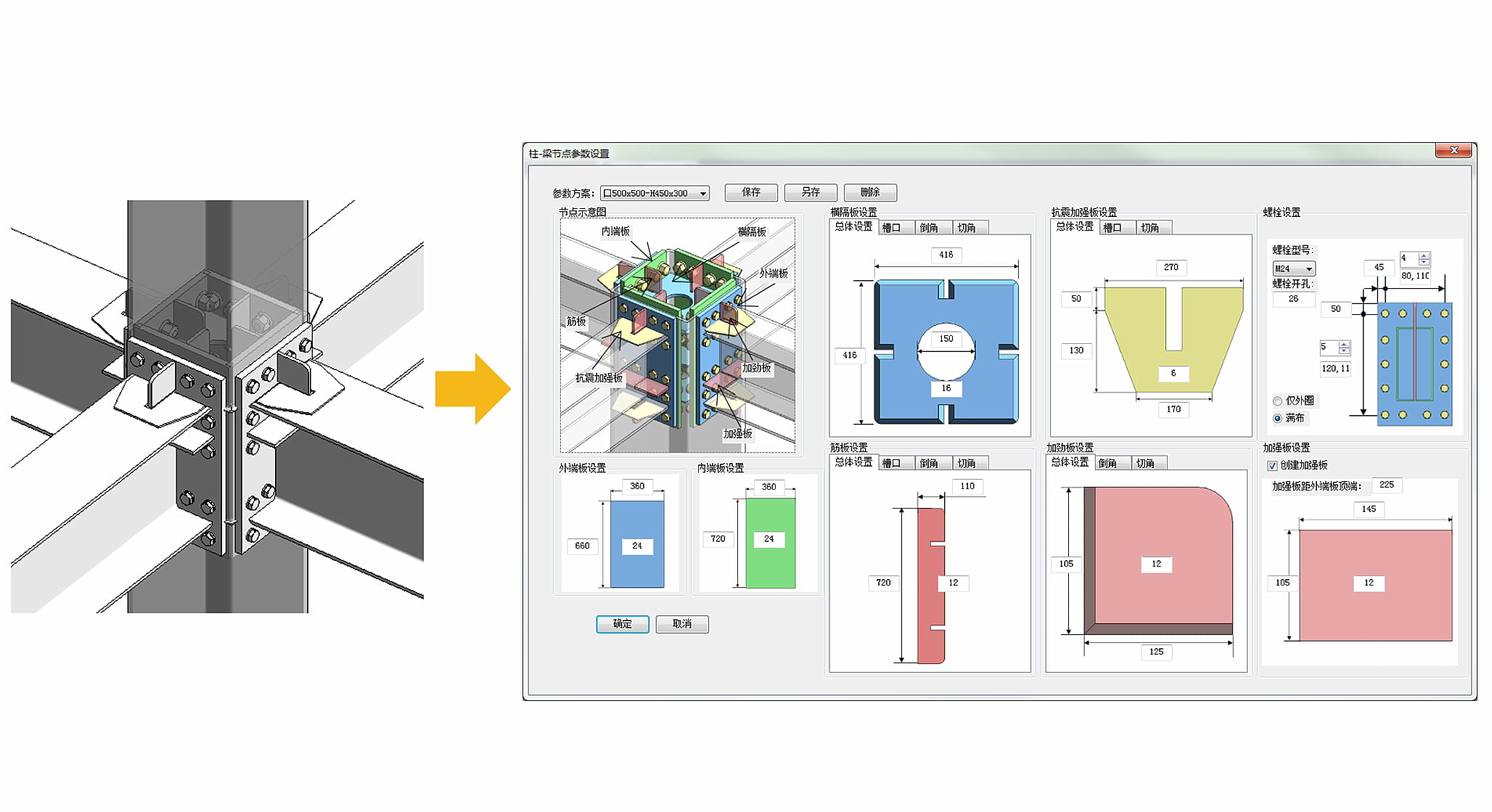

Standardized building components (steel columns, beams, joints, CCP panels, etc.) embedded as 3D models
Size parameters, material properties flexible adjustment
The whole Designing process for a typical 18-story-building can be done within 5 hours, reducing design cost by more than 80%

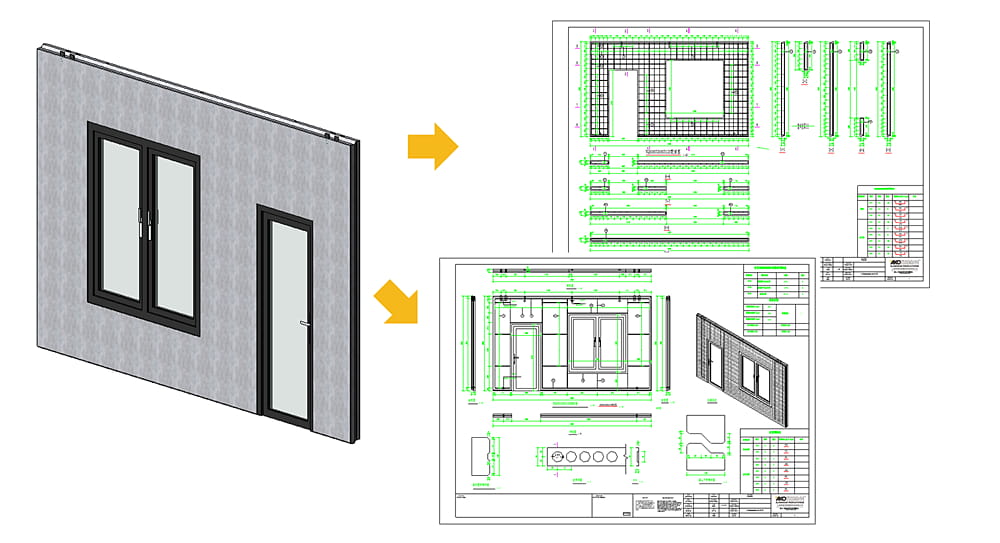

3D model directly converting to detailed 2D drawings
No need for secondary detailing
Automatic exports for manufacturing drawings
Once basic project information(floor plan, elevation plan, etc.) were acquired, Clients could get their preliminary 3D design within 8 hours

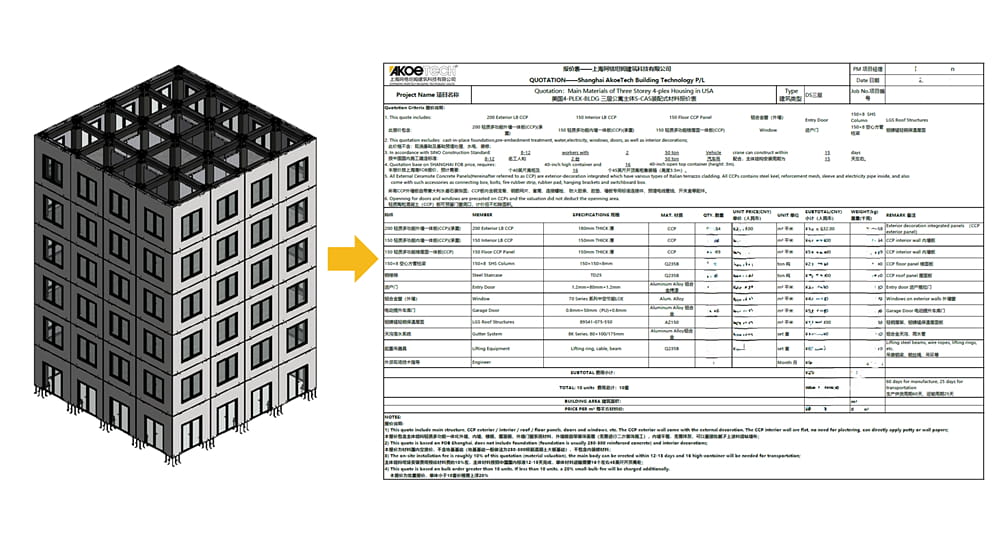

And the corresponding quotation comes out with one-click

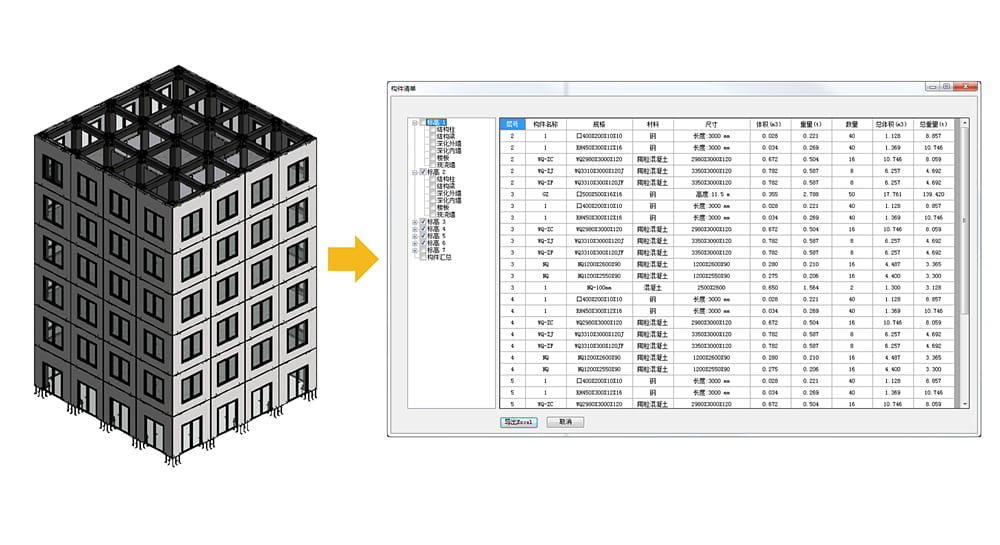

Material list comes out with on-click based on the 3D model
Including: raw material, minor components, etc.
Sent directly to the purchasing dpt.

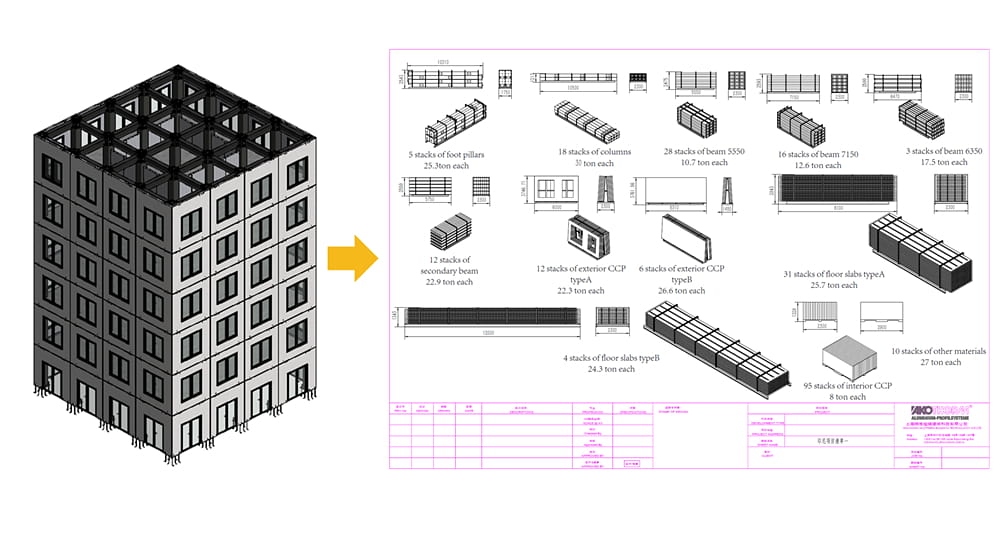

With standardized S-CAS building components, packing plan can be automatically generated
At the same time, requirements of logistic are generated(size and qty of containers needed, loading weights for each batch, etc.)
Just like LEGO and IKEA, all the component use simple and unified connection methods: bolts
Ordinary workers can learn to install within 5 minutes. Making a building construction as simple as LEGO toy and IKEA furniture
